2D and 3D worktable of fiber laser marking machine

Sometimes, some customers have confusion about 2D and 3D working table of fiber laser marker. Today I am trying to explain.


3D worktable:



3D worktable equip with portable and handheld type because its galvo head cannot up and down, so you need adjust focal length via 3D worktable. That's the reason why it has the function of "up and down".

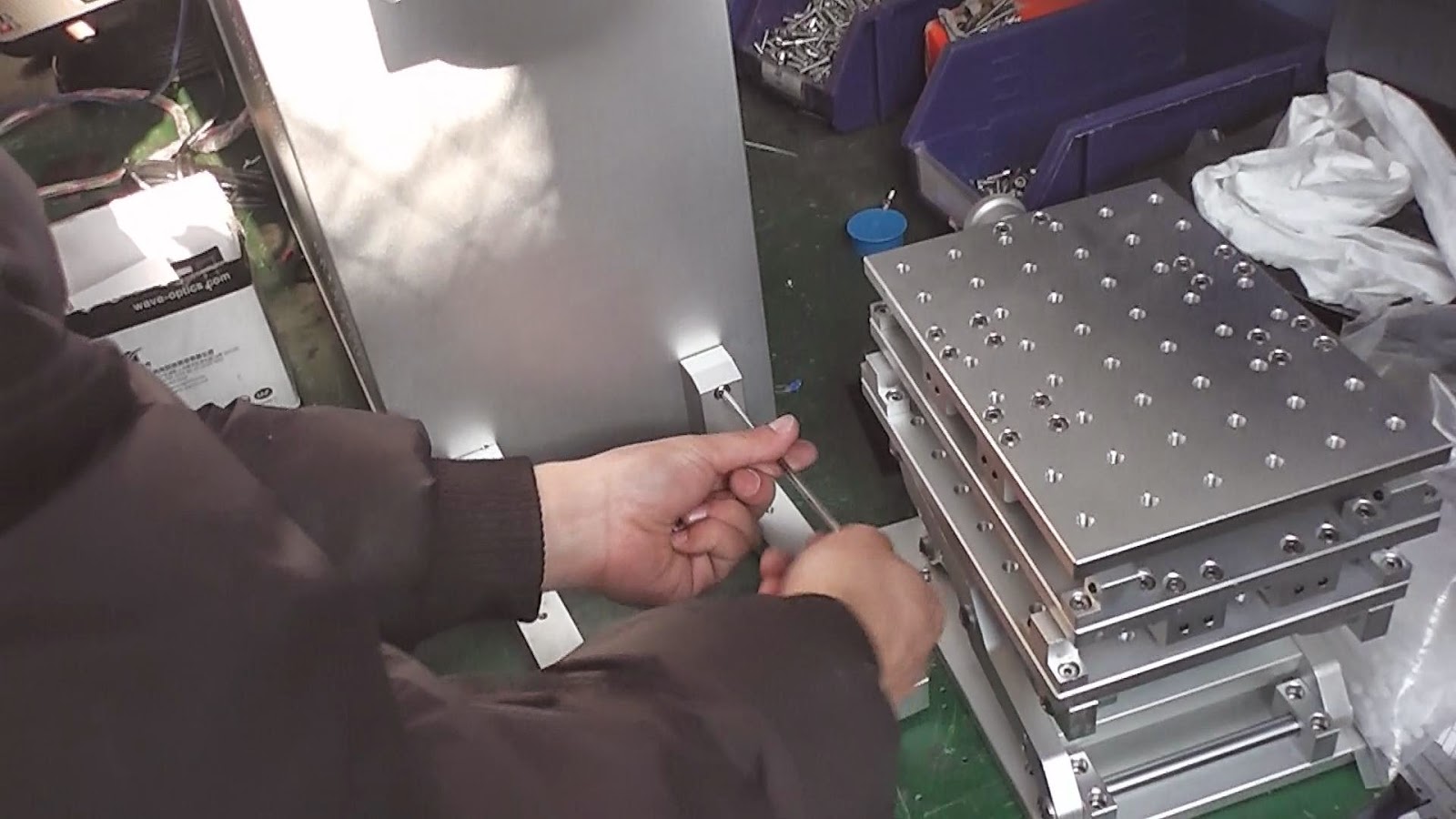

 If your product is big and thick, so maybe you cannot find right focal length. Now you need take work table off. If still not okay, then you can put machine in higher table and put worktable on a lower table. At last, screw "up and down" to adjust focal length.





 2D work table:

 This table can move "left and right", "back and forth". It cannot "up and down". Because 2D worktable always equip with desktop/mini type fiber laser marker. Desktop/mini fiber laser type can adjust focal length by lefing column and rotation handle. So 2D is enough for desktop and mini type.


Any other questions, pls leave message or ask me directly.
